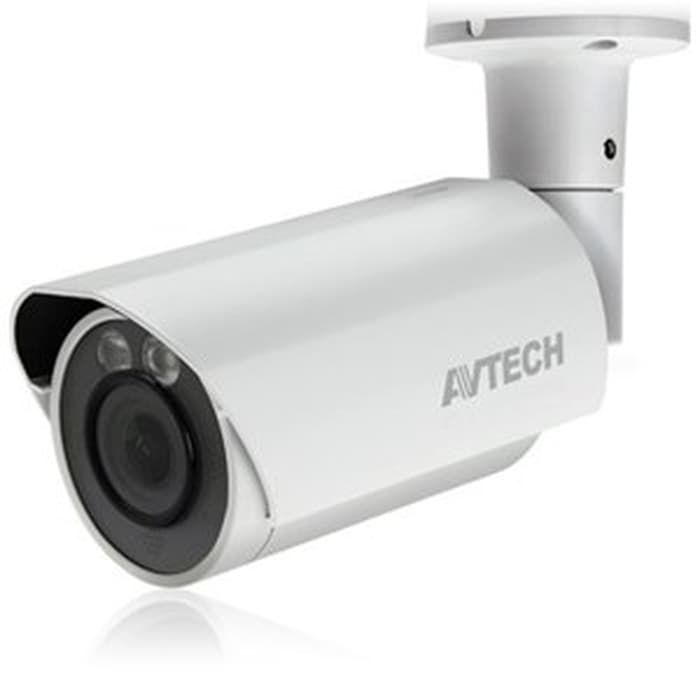

AVTECH AVT-553A HD TVI 1080P MOTORIZED IR BULLET

Lens f2.8 - 12mm / F1.4 - F2.8
I/O Ports External alarm
Effective Distance
Default mode: up to 20 meters
IR enhanced mode: up to 30 meters
Pixels 2 MP
IR LED 2 units
White Balance ATW
Spesifikasi
Pick-up Element : 1/2.8" SONY CMOS image sensor
Number of Pixels : 1936(H) 1096(V)
Video Frame Rate : 1080P@30fps / 1080P@25fps
Min. Illumination : 0.1 Lux / F1.4(Wide)-F2.8(Tele), 0 Lux (IR LED ON)
S/N Ratio : More than 48dB (AGC OFF)
Shutter Speed : 1/10,000 - 1/7.5 (Slow shutter)
Lens Angle : Wide: 103 (Horizontal) / 54 (Vertical) / 122 (Diagonal)
Lens Angle : Tele: 31 (Horizontal) / 17 (Vertical) / 36 (Diagonal)
WDR : YES (120dB)
External alarm I/O : YES (1 input / 1 output)
IP Rating : IP66
Operating Temperature : -20? - 50?
Video Output : 1.0 Vp-p composite, 75?
Power Source (10%) : DC12V / 1A
Optional Peripherals : Ceiling-mount bracket (AVM552C-BBKT) / Connector (BULLETCON1)
Features
1/2.8 CMOS Sensor with 1080P video output
Motorized zoom lens equipped to allow focal length and focus adjustment remotely via DVR
External alarm I/O device connection
WDR to increase image recognizability in overexposure and dark areas
Solid Light series featuring better overexposure prevention (Advanced Smart Light Control), automatic adjustment of image brightness, and longer lifetime of LEDs
IR effective distance up to 30 meters for 24-hour surveillance
IP66 for weather-proof application
