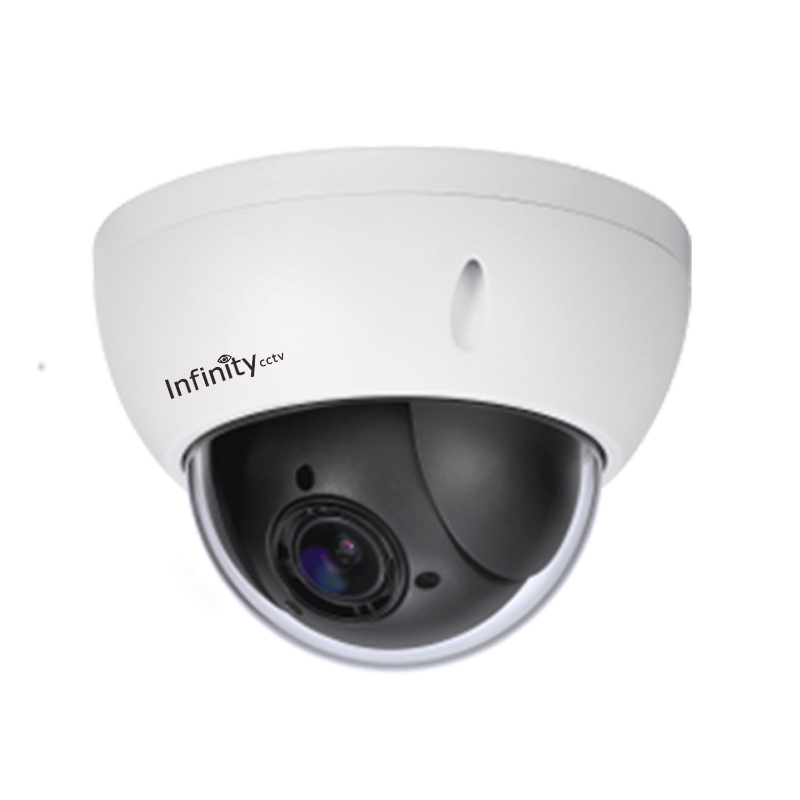

1/2.7” 2Megapixel CMOS
Powerful 4x optical zoom
120dB true WDR, 3D DNR
Max. 25/30fps@1080P, 25/30/50/60fps@720P
IP66, IK10
Description
|
Camera |
||||
|
Image Sensor |
1/2.7” CMOS |
|||
|
Effective Pixels |
1944(H) x 1092(V), 2 Megapixels |
|||
|
Scanning System |
Progressive |
|||
|
Electronic Shutter Speed |
1/1s~1/30,000s |
|||
|
Minimum Illumination |
Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6 |
|||
|
S/N Ratio |
More than 55dB |
|||
|
IR Distance |
N/A |
|||
|
IR On/Off Control |
N/A |
|||
|
IR LEDs |
N/A |
|||
|
Lens |
||||
|
Focal Length |
2.7mm~11mm |
|||
|
Max. Aperture |
F1.6 |
|||
|
Angle of View |
H: 112.5° ~ 30° |
|||
|
Optical Zoom |
4x |
|||
|
Focus Control |
Auto/Manual |
|||
|
Close Focus Distance |
100mm~ 1000mm |
|||
|
DORI Distance |
||||
| Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. | ||||
