-2 Megapixel high-performance CMOS
-Analog HD output, up to 1080P resolution
-True Day/Night
-up to 20m IR distance
-IP66 Weatherproof
Description

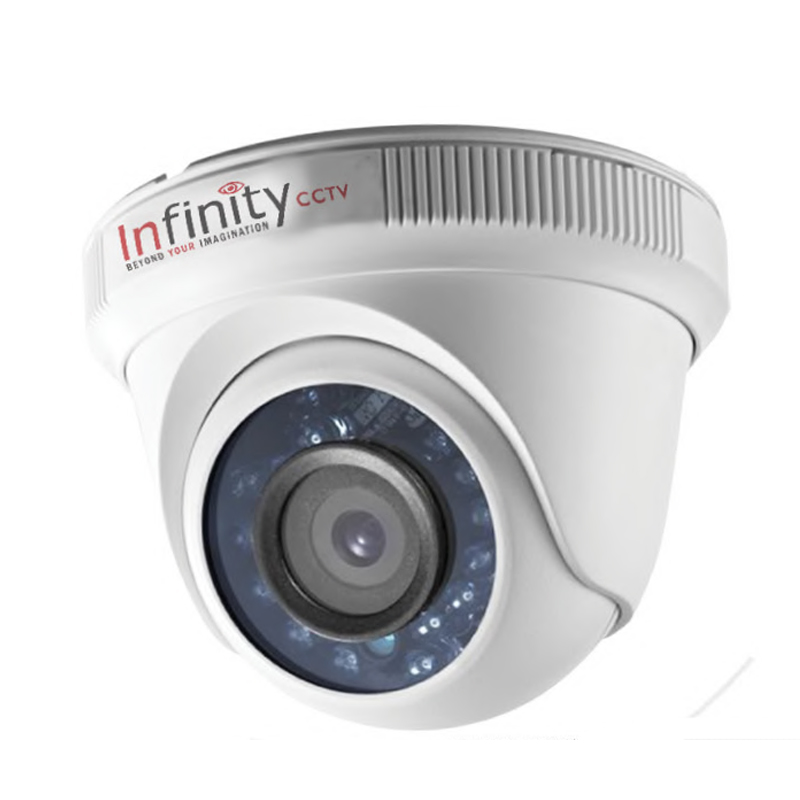

| Model | Infinity TD 23 | |
| Camera | Image Sensor | 2MP CMOS Image Sensor |
| Signal System | PAL/NTSC | |
| Effective Pixels | 1930(H) × 1088(V) | |
| Min. Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR | |
| Shutter Time | 1/25(1/30) s to 1/50,000 s | |
| Lens | 2.8mm, 3.6mm, 6mm optional Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm) |
|
| Lens Mount | M12 | |
| Day & Night | ICR | |
| Angle Adjustment | Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° | |
| Synchronization | Internal synchronization | |
| Video Frame Rate | 1080p@25fps/1080p@30fps | |
| HD Video Output | 1 Analog HD output | |
| S/N Ratio | ?62dB | |
| General | Operating Conditions | -40 °C – 60 °C (-40 °F – 140 °F) |
| Humidity 90% or less (non-condensing) | ||
| Power Supply | 12 VDC±15% | |
| Power Consumption | Max. 4W | |
| IR Range | Up to 20m | |
| Dimension: | Φ89.5 × 69.8 mm(Φ3.52” × 2.75”) | |
| Weight: | 280 g | |
| SKU | |
| Part Number | |
| Global Trade Number | |
| Ukuran (L X W X H cm) | 0x0x0 |
| Berat (kg) | 0.00 |
