1.0 MP high-performance CMOS
Turbo HD output, up to 720P resolution
True Day/Night
DNR, smart IR
Up to 20m IR distance
IP66 weatherproof
Description
| Model | TS-22 | |

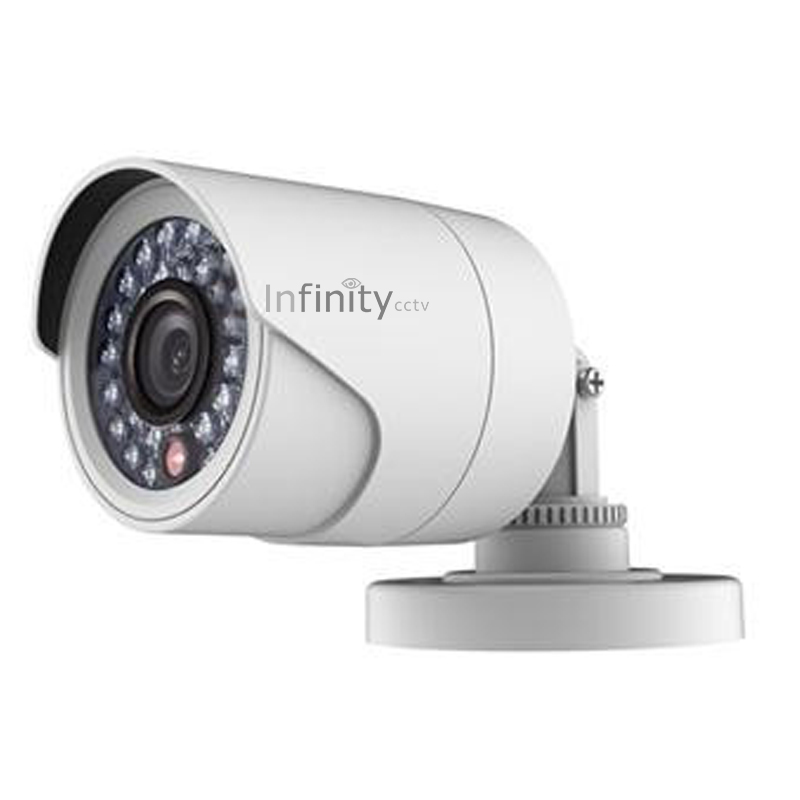

| 720p IR turbo HD bullet camera | ||
| Camera | Image Sensor | 1/4" Progressive scan CMOS |
| Effective Pixels | 1296(H)x732(V) | |
| Min. Ilumination | 0.01Lux @(F1.2, AGC ON), 0Lux with IR | |
| Shutter Time | 1/25(1/30)s to 1/50,000s | |
| Lens | 3.6mm (2.8mm, 6mm optional) | |
| Angle of view: 71? (3.6mm), 92?(2.8mm), 57?(6mm) | ||
| Lens Mount | M12 | |
| Angle Adjusment | Pan: 0 - 360?, Tilt: 0 - 180°, Rotation: 0 - 360? | |
| Day & Night | ICR | |
| Synchronization | Internal synchronization | |
| Video Frame Rate | 720p@25fps/720p@30fps | |
| HD Video Output | 1 Turbo HD output | |
| General | Working Temprature/Humidity | "-40?C - 60?C |
| Power Supply | 12 VDC±15% | |
| Power Consumption | Max. 4W | |
| Weather Proof Ratings | IP66 | |
| IR Range | Up to 20m | |
| Dimension | ?70x149.5mm | |
| SKU | |
| Part Number | |
| Global Trade Number | |
| Ukuran (L X W X H cm) | 0x0x0 |
| Berat (kg) | 0.00 |
