-1.0 Megapixel high-performance CMOS
-Turbo HD output, up to 720P resolution
-True Day/Night
-fixed Lens
-Up to 20m IR distance
Description

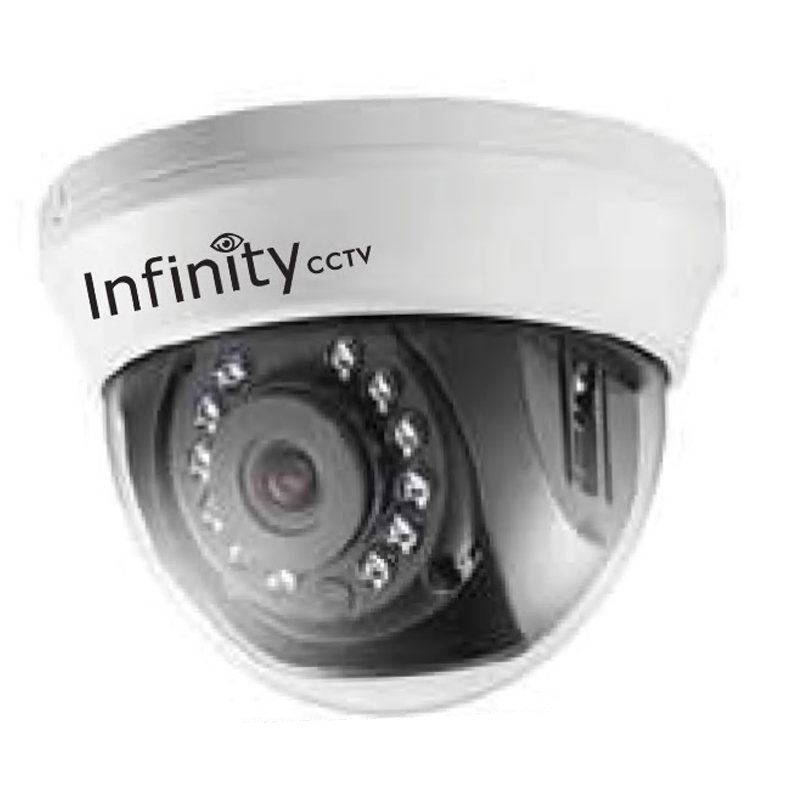

| Model | Infinity TC-12 | |
| Camera | Image Sensor | 1 MP CMOS Image Sensor |
| Signal System | PAL/NTSC PAL/NTSC | |
| Effective Pixels | 1296(H)x732(V) | |
| Min. Illumination | 0.1 Lux @(F1.2,AGC ON), 0 Lux with IR | |
| Shutter speed | 1/25(1/30) s to 1/50,000 s | |
| Lens | 3.6mm (2.8mm, 6mm optional) | |
| Angle of View: 70.9°(3.6mm), 92°(2.8mm), 56.7°(6mm) | ||
| Lens Mount | M12 | |
| Angle Adjustment | Pan: 0 - 350°, Tilt: 0 - 70°, Rotation: 0 - 350° | |
| Day & Night | IR cut filter with auto switch | |
| Synchronization | Internal synchronization | |
| Video Frame Rate | 720p@25fps/720p@30fps | |
| HD Video Output | 1 Turbo HD output | |
| S/N Ratio: | More than 62 dB | |
| General | Operating Conditions | -20 °C - 45 °C (-4 °F - 113 °F) |
| Humidity 90% or less (non-condensing) | ||
| Power Supply | 12 VDC±15% | |
| Power Consumption | Max. 4W | |
| Weather Proof Ratings | IP66 | |
| IR Range | Up to 20 meters | |
| Dimensions | Φ 98 x 65.4 mm (φ 3.86” x 2.57”) | |
| Weight | 240 g | |
