* 1.3 progressive CMOS 3MP 2048x1536 @15fps resolution
* Standard video compression with high compression ratio
* High-perfomance and long service life infrared LED
* Up to 30m IR Range
* Support dual stream & sub stream for mobile surveillance
* ip66
Description
| Model | I-82 | |

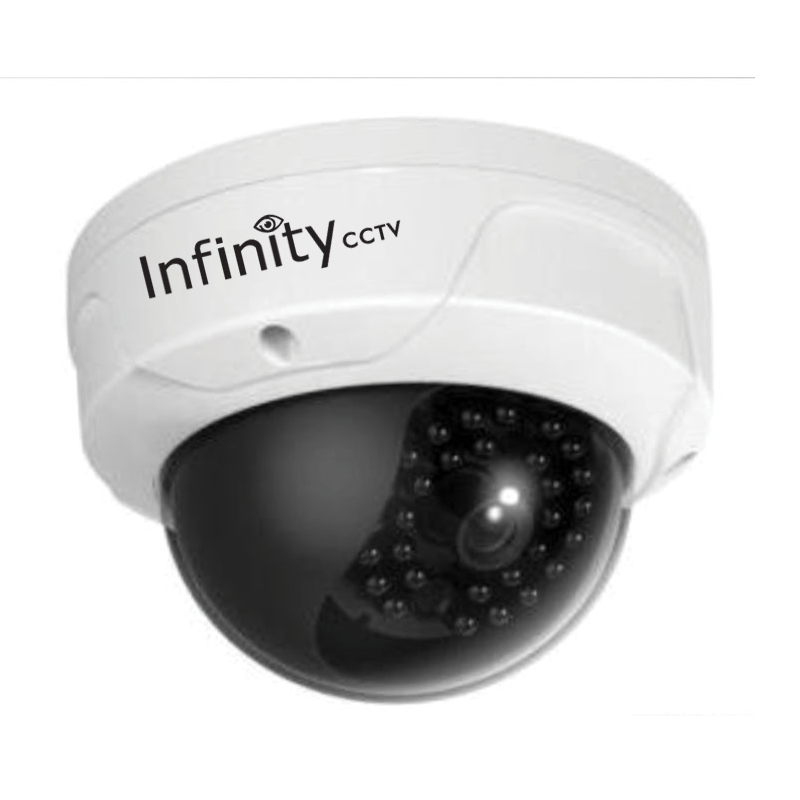

| 3 Megapixel CMOS ICR Infrared Network DomeDome Dome Camera | ||
| Camera | Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | 0.07Lux @ (F1.2, AGC ON) ,0 Lux with IR | |
| Shutter Speed | 1/30 s to 1/100,000 s | |
| Lens | "4mm@ F2.0, Angle of view: 75.8° (2.8mm, 6mm, 12mm optional) |
|
| Lens Mount | M12 | |
| Day &Night | IR cut filter with auto switch | |
| Digital Noise Reduction | 3D DNR | |
| Wide Dynamic Range | Digital WDR | |
| Angle Adjustment | Pan:0?-355?, Tilt:0?-65? | |
| Compression Standard | Video Compression | H.264/ MJPEG |
| H.264 Type | Main Profile | |
| Video Bit Rate | 32 Kbps – 16 Mbps | |
| Dual Stream | Yes | |
| Image | Max. Resolution | 2048×1536 |
| Frame Rate | 50Hz: 12.5fps (2048 × 1536),25fps (1920 × 1080), 25fps (1280 × 720) 60Hz: 15fps (2048 × 1536),30fps (1920 × 1080), 30fps (1280 × 720) |
|
| Image Settings | Saturation, Brightness, Contrast adjustable by client software or web browser | |
| Backlight compensation | Yes, zone optional | |
| Network | Network Storage | NAS |
| Alarm Trigger | Motion detection, Dynamic analysis, Tampering alarm | |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour(SIP optional) |
|
| Security | User Authentication, Watermark | |
| Standard | ONVIF, PSIA, CGI | |
| Interface | Communication Interface | 1 RJ45 10M/100M Ethernet interface |
| General | Operating Conditions | "-30 °C – 60 °C (-22 °F – 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply | 12 V DC ± 10% PoE (802.3af) |
|
| Power Consumption | Max. 5 W (Max. 7 W with IR cut filter on) | |
| Ingress protection level |
IP66 | |
| IR Range | Approx. 10 to 30 meters | |
| Impact protection | IEC60068-2-75Eh, 50J; EN50102, up to IK10 | |
| Dimensions | Φ111 × 82 (4.4” × 3.2”) | |
| Weight | 500g (1.1 lbs) | |
