ZKTEco BL-854N38A-E3

Camera

Model

BL-854N38A-E3

Image Sensor

1/2.8” Sony STARVIS CMOS

Effective Pixels

2592 * 1520

Flash / DDR

128Mb / 1Gb

IR LED No.

2

IR Distance

50m

S/N Ratio

> 52dB

Lens

Lens Type

Motorized

Mount Type

Board-in

Focal Length

3.6mm - 10.8mm

Aperture

F1.7 - F3.3

FOV

29.8° ~ 93.5°

Optical Zoom

3X

Video

Compression

H.265+, H.265, H.264

Resolution

4MP (2592 x 1520) / 3MP(2304 x 1296) /1080P (1920 x 1080) / 1.3MP (1280 x 960) / 720P (1280 x 720)

Bitrate Control

CBR / VBR

Bitrate

1024Kbps ~ 4Mbps

Multi-Streaming

Main Stream

4MP@25fps / 3MP@25fps / 1080P@25fps / 960P@25fps / 720P@25fps

Sub Stream

D1@25fps / VGA@25fps / CIF@25fps

Third Stream

N/A

Motion Detection

Support

Digital Zoom

Support

Audio Compression

G7.11u

Privacy Mask

5 areas

WDR

TWDR

Day / Night

Support

White Balance

Support

Corridor Mode

Support

Defog

N/A

Noise Reduction

2D/3D DNR

HLC

Support

Mirror / Flip

Support

BLC

Support

ROI

4 areas

Anti-flicker

Support

IVA

Intelligent Video

Face Detection / Line Crossing / Area Detection / Target Count / Object Left / Lost / VQD / Video Tampering

Facial Detection

Face Templates

N/A

Face Detected Per Frame

30

Detected Face Size

80 x 80 ~ 300 x 300 Pixels

Face Quality Filtering

Support

Detection Area

User-defined

Capture Response

≤1s

Network

Protocol

TCP/IP, UDP, HTTP, DHCP, RTSP, NTP

Interoperability

ONVIF Profile S, SDK, API

Max. Online Users

3

Web Browser

IE / Firefox / Chrome / Safari

Management Software (VMS)

AntarVis 2.0
ZKBioSecurity IVS
ZKBio Access IVS

Operation System

Windows

Mobile APP

AntarView Pro

P2P Cloud Service

Support

Note

Video streaming is not available for Firefox / Chrome / Safari

Interface

Ethernet

1 RJ-45 port (10/100Mbps)

Audio I/O

1/1

Alarm I/O

2/1

RS485

Support

Reset Button

Support

Micro-SD Slot

Support (Max 128GB)

ANR

Support

USB

N/A

General

Power Supply

PoE (IEEE802.3af ), DC 12V±10%

Power Consumption

< 3W

Ingress Protection

IP67

Dimensions (L*W*H)

Φ102 * 93.3 (mm)

Working Temperature

-30°C ~ 60°C

Working Humidity

10% ~ 90%

Net Weight

0.50kg

Gross Weight

0.70kg

Ordering Information

Camera

4MP Camera

Model

BL-854N38A-E3

Description

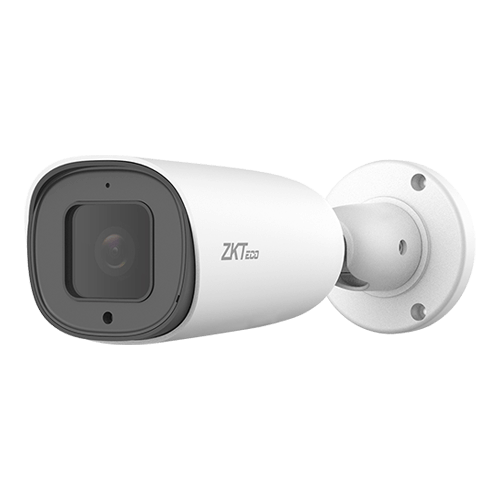

4MP Motorized Lens Face Detection
Bullet IP Camera
