Camera
Model

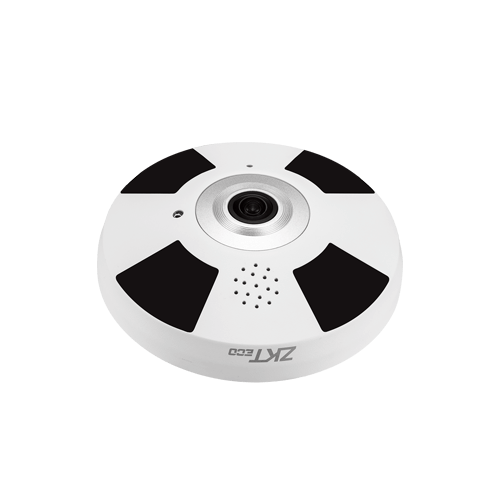

DL-858V17C-FS
Image Sensor
1/1.7” Sony CMOS
Effective Pixels
3840 * 2160
Min. Illumination
Color: 0.1Lux / F1.4 (AGC ON)
B/W: 0 Lux with IR ON
Flash / DDR
128Mb / 256Mb
IR LED No.
4
IR Distance
10 ~ 20m
S/N Ratio
> 52dB
Lens
Lens Type
Fisheye Lens
Mount Type
N/A
Focal Length
N/A
Aperture
F1.4
FOV
360°
Optical Zoom
N/A
Video
Compression
H.265 / H.264
Resolution
8MP (3840 * 2160) / 1080P (1920 * 1080) / 1.3M (1280 * 960) / 720P (1280 * 720) / D1 (704 * 576) / CIF (352 * 288)
Bitrate Control
CBR / VBR
Bitrate
32Kbps - 16Mbps
Multi-Streaming
Main Stream: 4K@30fps / 5M@30fps / 4MP@30fps / 3MP@30fps / 2MP@30fps
Sub Stream: 720P@30fps / D1@30fps / CIF@30fps
N/A
Motion Detection
Support
Digital Zoom
Support
Audio Compression
G7.11u
Privacy Mask
5 areas
WDR
TWDR
Day / Night
Support
White Balance
Support
Defog
Support
Noise Reduction
2D/3D DNR
Mirror / Flip
Support
Corridor Mode
Suppor
HLC
Support
BLC
Support
ROI
4 areas
Anti-flicker
Support
IVA
Intelligent Video
N/A
Network
Protocol
TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP / RTSP, DNS, DDNS, FTP, NTP, PPPoE, UPNP, SMTP, SNMP
Interoperability
ONVIF Profile S, SDK, API
Max. Online Users
5
Web Browser
IE / Firefox / Chrome / Safari
Management Software (VMS)
AntarVis 2.0 / ZKBioSecurity IVS / ZKBio Access IVS
Operation System
Windows
Mobile Application
AntarView Pro
P2P Cloud Service
Support
Note
Video streaming is not available for Firefox / Chrome / Safari.
Interface
Ethernet
1 RJ-45 port (10/100Mbps)
Audio I/O
1 in / 1 out
Alarm I/O
1 in / 1 out
RS485
Support
Reset Button
N/A
Micro-SD Slot
Support (Max 128GB)
ANR
Support
USB
N/A
General
Power Supply
PoE (IEEE802.3af ), DC 12V±10%
Power Consumption
< 5W
Ingress Protection
IP66
Dimensions
Φ149.4 * 50 mm
Working Temperature
-10°C ~ 50°C
Working Humidity
10% ~ 90%
Net Weight
2.0kg
Gross Weight
2.0kg
Ordering Information
Camera
8MP Camera
Model
DL-858V17C-FS
Description
8MP Fisheye IP Camera
