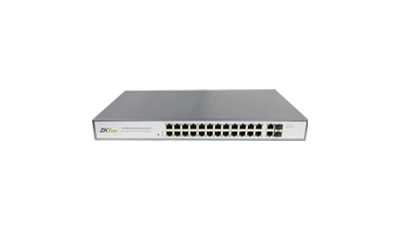

ZKTEco PE24-240

Model

PE24-240

Ethernet Port 17-18

10 / 100 / 1000Mpps combo port @100 meters

POE Standard

IEEE 802.3af, IEEE802.3at

Network Protocol

IEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control
IEEE802.3ab

PoE Power Consumption

Port1-24≤ 30W, Total≤ 400W

Switching Bandwidth

64Gbps (non-blocking)

Forwarding Rate

6.55Mpps

Buffer Memory

4MB

MAC Size

16KB

MTBF

100,000hours

Power Input

AC 240V, 50 / 60Hz

PoE Power Supply

1,2 (+) / 3,6(-) (Default); 45 (+),78 (-) (Option)

Safety

CE mark, commercial
FCC Part 15 Class B
VCCI Class B
EN 55022 (CISPR 22), Class B

Working Temperature

-20°C ~ 50°C (-4°F ~ 122°F)

Working Humidity

10% ~ 90%, non-condensing

Dimensions (L*W*H)

440 * 290 * 44.5 (mm)

Network Protocol

Spanning Tree Protocol (STP)

Standard Spanning Tree 802.1d
Rapid Spanning Tree (RSTP) 802.1w
MSTP (Multi-Service Transfer Platform)

Port Aggregation

Link Aggregation Control Protocol (LACP) IEEE 802.3ad

Mirroring

Many-to-one port mirroring

DHCP

Support DHCP client / server
Support DHCP snooping

VLAN

802.1Q tag-based VLAN
Port-based VLAN
4K VLANs simultaneously
(out of 4096 VLAN IDs)

Multicast

IGMP v1 / v2 snooping
supports 1024 multicast groups
(source-specific multicasting is not supported)

Security

SHH / SSL / HTTPS / DHCP Snooping / IP Source Guard /
Port Security / ARP Inspection / Storm Control / ACLs

Link Layer Discovery Protocol (LLDP)

Support

Green and Energy & Saving Ethernet (EEE)

Support

Quality of Service(QoS)

Hardware Priority Queue / Scheduling / Classification / Rate Limiting

System Management

Web / Port mirroring / Firmware upgrade

Ethernet Port 1-24

10 / 100Mpps POE port
All ports support MDI / MDIX self-adaptation
