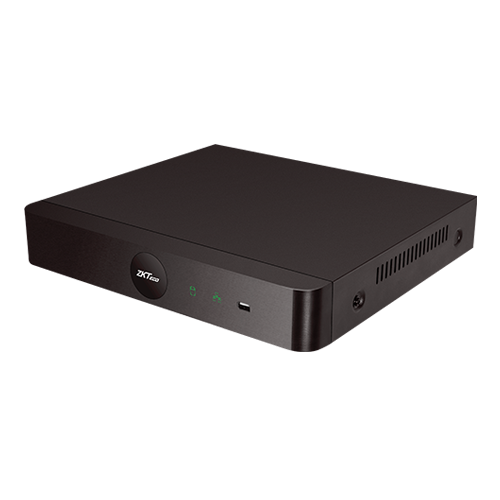

Model
Z8504NER-4P / Z8508NER-8P
System
Processor
Multi-core Embedded Processor
Operation System
Embedded Linux
IVA Alarm
Local IVA Functions
Target Counting, Object Detection, Intrusion, Tripwire
Regular Detection
Motion Detection / Video Tampering / Video Loss
I/O Port and Storage
Network Interface
1 RJ-45 port (10/100Mbps)
USB
2*USB 2.0
HDMI
1 * 1080P HDMI
VGA
1 * VGA
Alarm Input
N/A
Alarm Output
N/A
HDD
1 SATA, up to 8TB capacity for each HDD
RAID
N/A
PoE Ports
Z8504NER-4P: 4
Z8508NER-8P: 8
Playback and Backup
Playback Channel
4
Search Mode
IVA Search / Time / Motion Detection
Playback Function
Play, Stop, Play forward, Play backward, 30 seconds forward, 30 seconds backward, Fast play, Slow play, Single frame play, Hide / Show the time bar, Backup, Snapshot, Full screen
Backup Mode
USB device / Network
Video / Audio
Max. IPC Input
Z8504NER-4P: 4
Z8508NER-8P: 8
Audio Compression
G.711a
Two-way Talk
N/A
Recording
Video Compression
H.265+ / H.265 / H.264+ / H.264
Recording Resolution
5MP / 3MP / 1080P / 960P / 720P
Incoming Bandwidth
40Mbps
Bitrate
16K ~ 8Mpbs
Record Mode
Manual / External Alarm / Motion / Scheduled / IVA Alarm
Network
Network Protocol
TCP/IP, HTTP, DDNS, SMTP (SSL), DHCP, PPPoE, UPnP, NTP, P2P
Max. Online Users
5
Mobile Application
AntarView Pro
Interoperability
Onvif Profile S, SDK
Power
Power Supply
Z8504NER-4P: DC 48V 1.5A
Z8508NER-8P: DC 48V 2.5A
Consumption
≤15W(Without HDD)
General
Working Temperature
-10? ~ +55?
Working Humidity
10 ~ 90%
Dimensions
255mm * 210mm * 43mm
Net Weight
2.5KG
Gross Weight
3KG
Ordering Information
Type
PoE NVR
Part Number
Z8504NER-4P / Z8508NER-8P
Description
Z8504NER-4P: 4 channel 1 SATA PoE NVR
Z8508NER-8P: 8 channel 1 SATA PoE NVR
