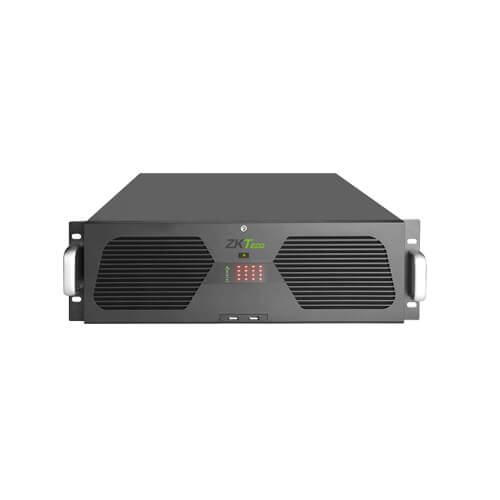

Model
Z85128NTR
System
Main Processor
Multi-core embedded processor
Operating System
Embedded LINUX
Video and Audio
Max. IPC Input
128CH
Two-way Talk
Support
Audio Compression
G.711u
Live View
Display Split
1 / 4 / 6 / 8 / 9 / 16 / 36 / 64 / 128 CH
Resolution
8MP (3840 * 2160) / 5MP (2592 * 1944) / 2MP (1920 * 1080) / 1.3MP (1280 * 1024) / 1MP (1280 * 720) / D1 (1024 * 768)
Live View Capability
36CH@D1 (25 / 30fps)
Recording
Video Compression
H.265+ / H.265 / H.264
Recording Resolution
8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1
Max. Decoding Capability
36CH@D1 (25 / 30fps)
Incoming Bandwidth
640 Mbps
Bit Rate
Main Stream: 256Kbps ~ 8192Kbps
Sub Stream: 50Kbps ~ 700Kbps
Record Mode
Schedule, Manual, Motion Detection, IVA Events Alarm
Record Interval
1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Playback and Backup
Playback Channel
16CH
Search Mode
Time/ Date, Alarm Types, IVA Search, Face Retrieval
Playback Function
Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward,
Fast Play, Slow Play, Single Frame Play, Hide / Show Time Bar, Backup, Snapshot, Full Screen
Backup Mode
USB Device / Network Remote
IVA Alarm
Local IVA Functions
Line Crossing / Target Counting / Object Left / Lost / Intrusion / Scene Change / VQD
Regular Detection
Motion Detection / Video Shelter / Video Loss
AI Search
Support search target video by multiple intelligent conditions
Network
Network Protocol
TCP/IP, HTTP, DDNS, SMTP (SSL), DHCP, PPPoE, UPnP, NTP, P2P
Max. Online Users
5
Web Browser
Internet Explorer
Operation System
Windows
Management Platform
AntarVis 2.0
Mobile Application
AntarView Pro (iOS & Android)
P2P Cloud Service
Support
Interoperability
ONVIF Profile S, SDK, CGI, API
Storage & Auxiliary Interface
SATA Ports
16 SATA Ports, up to 8 TB capacity
eSATA
N/A
Raid 0 /1 / 5 / 6 / 10
Support
HDMI
2 * HDMI (4K)
VGA
2 * VGA (1080P)
Network Interface
1 RJ - 45 Port (1,000Mbps)
PoE Ports
N/A
USB
2 * USB 2.0, 1 * USB 3.0
Audio Input/Output
1/1
Alarm Input / Output
4/4
RS-485
Support
Power
Power Supply
AC100 ~ 240V, 47Hz ~ 63Hz
Power Consumption
50W (Without HDD)
General
Casing
3U
Working Temperature
-10°C ~ 55°C / 14°F ~ 131°F
Working Humidity
10% ~ 90%
Dimensions (L*W*H)
430 * 483 * 143 (mm)
Net Weight
18.5kg (without HDD)
Gross Weight
19kg (without HDD)
Order Information
Name
NVR
Model
Z85128NTR
Description
128CH H.265+ NVR, 16SATA
