1/2.7" 2.1Mega pixel CMOS
25/30 fps@ 1080P, 25/30 /50/60 fps@720P
High speed, long distance real -time transmission
HD and SD dual-output
OSD Menu, control over coaxial cable
WDR( 120dB), Day/Night(ICR), AWB, AGC , BLC, 3DNR
3.6mm xed lens (6mm optional)
Max. IR LEDs length 3 0m, Smart IR
IP67, DC12V
Description

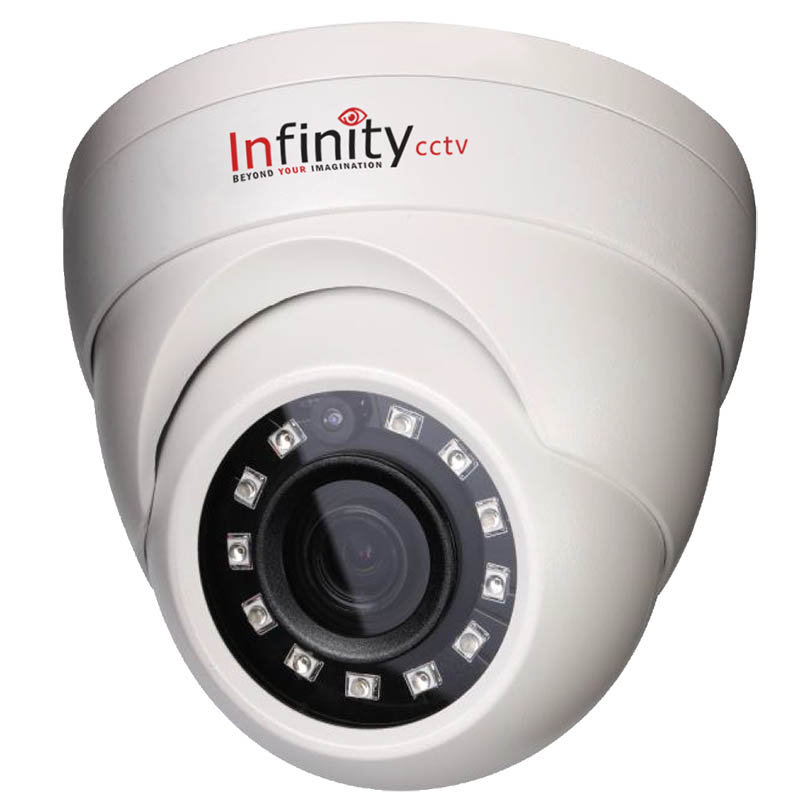

Model | BMC - 233 | |
Camera | Image Sensor | 1/2.7" 2.1Megapixel CMOS |
Eective Pixels | 1928(H)×1088(V) | |
Electronic Shutter | 1.3s~1/3 0,000s | |
Video Frame Rate | 25/30/50/60 fps@720P; 25/30fps@1080P | |
Synchronization | Internal | |
Mini. Illumination | 0.03Lux/F2.0, 0Lux IR on | |
Video Output | 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output | |
Camera Features | Max. IR LEDs Length | 30m, Smart IR |
Day/Night | Auto(ICR) / Color / B/W | |
Backlight Compensation | 120dB True WDR | |
Noise Reduction | 2D/3D | |
OSD Menu | Multi -language | |
Lens | Focal Length | 3.6mm (6mm optional) |
Angle of View | H: 90º(59.4º) | |
Mount Type | Board-in | |
General | Power Supply | DC12V± 25% |
Power Consumption | Max 4W | |
Working Environment | "-30°C~+60°C / Less than 95 %RH (no condensation) | |
Transmission Distance | Over 500m via 75 -3 coaxial cable | |
Ingress Protection | IP67 | |
Dimension s(W×D×H) | 93.4mm×79.7mm | |
Weight | 0.33kg | |
Material | Aluminium |
