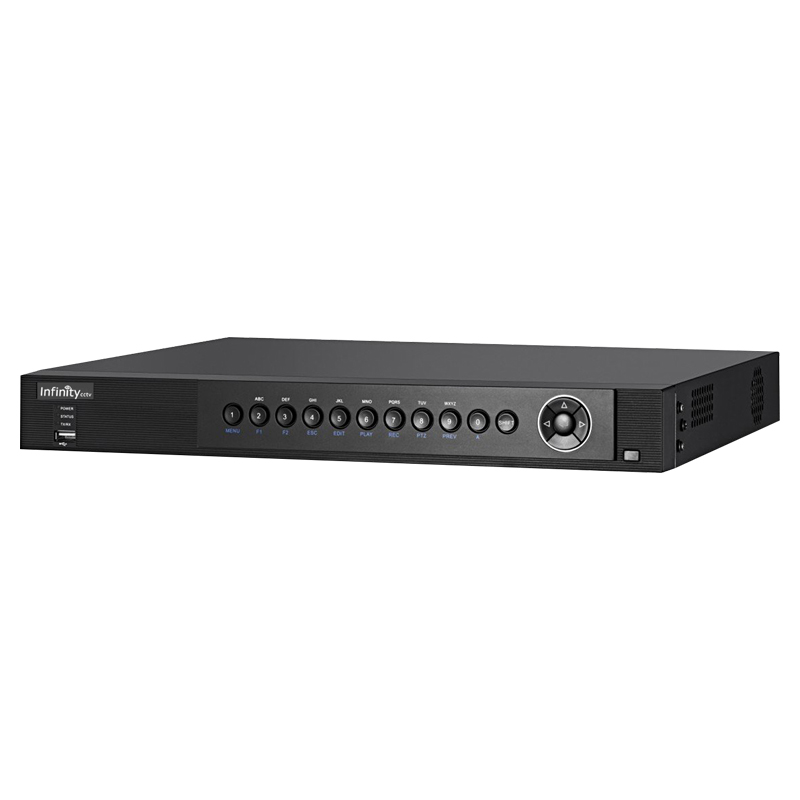

Support HD-TVI, IPC,AHD and analog cameras with adaptive access
Support Cloud storage(One Drive, Google Drive or Drop Box)
HDMI and VGA output at up to 1920×1080P (TDV-7304-H1SV; resolution,HDMI output at up to 4K(3840x2160) resolution for TDV-7308-H1SV
Long transmission distance over coax cable
Up to 4/8-ch synchronous playback at 1080p resolution playback at up to 256X speed.
Description
| Video/Audio Input | Audio Input | 4/8-ch |
| Video Compression | H.264,H.264+ | |
| Analog and HD-TVI video input | 4-ch,BNC interface (1.0Vp-p, 75 Ω)connection | |
| Supported camera types | Support HDTVI input: 3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, | |
| Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz | ||
| Support CVBS input | ||
| Video Input Interface | BNC (1.0 Vp-p, 75Ω) | |
| Audio Compression | G.711u | |
| Audio Input Interface | 4-ch, RCA (2.0 Vp-p, 1 KΩ) | |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) | |
| Video/Audio Output | CVBS Output | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 |
| HDMI/VGA Output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz | |
| 1-ch,4K (3840 × 2160)/30Hz,2K(2560 ×1440)/60Hz, 1920 ×1080/60Hz, 1280 ×1024/60 Hz, 1280 ×720/60Hz, 1024 ×768/60 Hz | ||
| Recording resolution | Mainstream:3Mp@15fps/1080p/720p/WD1/4CIF | |
| Sub-stream:WD1/4CIF@12fps(non-real-time);CIF/QVGA/QCIF(real-time) | ||
| Frame Rate | Main stream:3 MP@15fps;1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) | |
| Sub-stream:WD1/4CIF@12fps;CIF/QVGA/QCIF@25fps (P)/30fps (N) | ||
| Video Bit Rate | 32 Kbps-10 Mbps | |
| Stream Type | Video/Video&Audio | |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) | |
| Audio Output | 1-ch RCA(Linear, 1kΩ) | |
| Audio Bit Rate | 64kbps | |
| Dual Stream | Support | |
| Playback Resolution | 3MP/1080P/720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF | |
| Synchronous Playback | 4/8-ch | |
| Network Management | Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF | |
| Hard Disk Driver | Interface Type | 1 SATA Interface |
| Capacity | Up to 6 TB capacity for each disk | |
| External Interface | Network Interface | 1; 10M / 100M self-adaptive Ethernet interface (TDV-7304-H1SV), 1; 10M / 100M/ 1000M self-adaptive Ethernet interface (TDV-7308-H1SV) |
| USB Interface | 2 USB 2.0 Interfaces (TDV7304-H1SV); Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0 (TDV-7308-H1SV) |
|
| Serial Interface | 1; standard RS-485 serial interface, half-duplex | |
| Alarm Input | 4/8-ch | |
| Alarm Output | 1/4-ch | |
| General | Power Supply | 12V DC |
| Consumption | ≤ 15W/20W(without hard disks) | |
| Working Temperature | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) | |
| Working Humidity | 10% ~ 90% | |
| Chassis | Standard 1U chassis | |
| Dimensions | 315 × 242 × 45 mm | |
| (12.4 × 9.5 × 1.8 inch) | ||
| Weight | ≤2 kg(3.3lb) |
